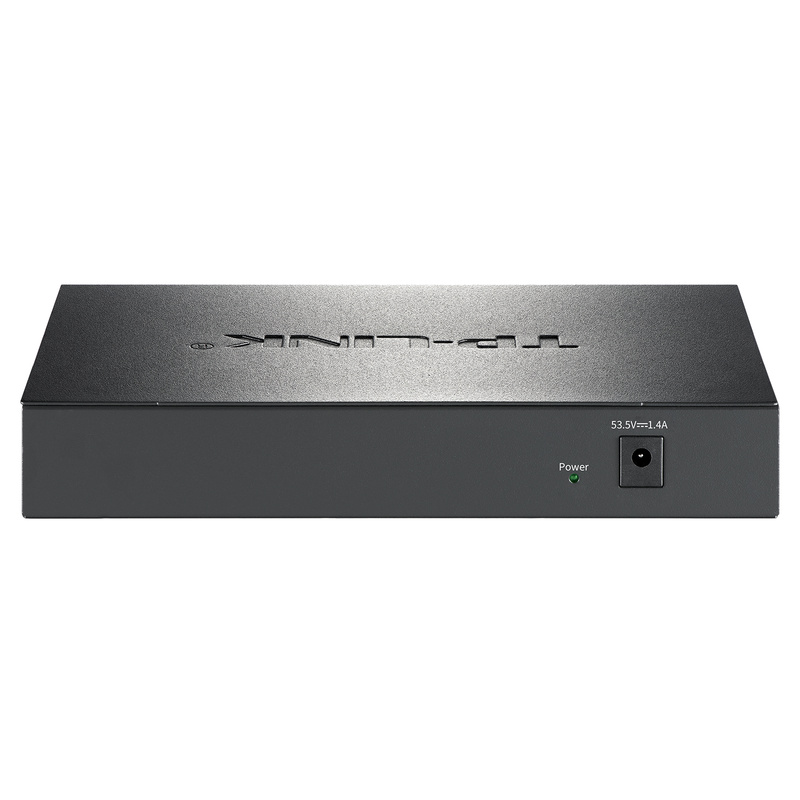

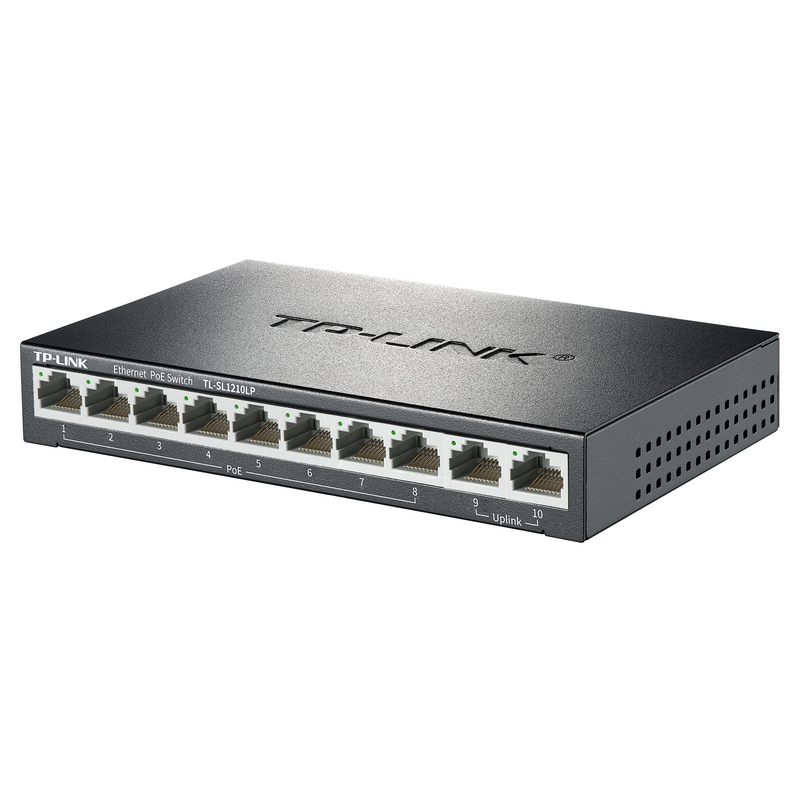

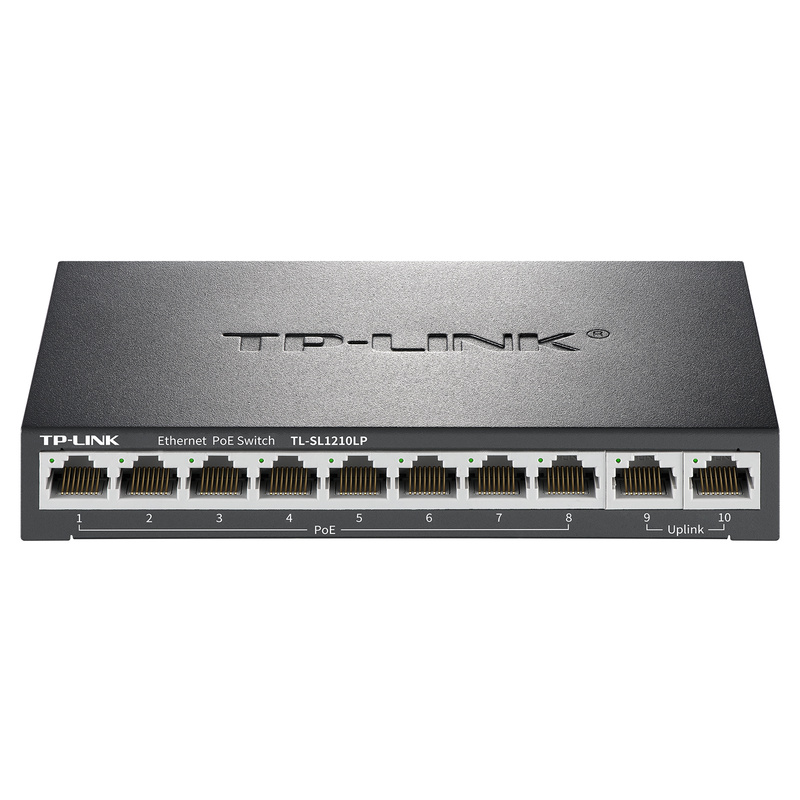

TL-SL1210LP is a Gigabit Uplink Ethernet PoE switch independently developed by TP-LINK, 8 100 Gigabit ports support PoE+ power supply, in line with IEEE 802.3af/at standard, single-port PoE power up to 30W, and the maximum PoE output power of the whole machine is 72W. As a PoE power supply device, it can automatically detect and identify the powered device that meets the standard and supply it with network cables. Plug-and-play, no configuration required, simple and convenient to use, meet the needs of high-density PoE power supply network environment, suitable for hotels, campuses, factory dormitories, small and medium-sized enterprises to build a cost-effective network.

• Eight 10/100 Base-T RJ45 ports support PoE power supply
• Two 10/100/1000 Base-T RJ45 uplink ports
• The PoE power supply power of the whole machine is up to 72W, and the PoE power supply power of a single port is up to 30W
• Supports IEEE 802.3at/af PoE power supply standard
• PoE power delivery ports support the priority mechanism

100 Gigabit access, Gigabit uplink

• Provides 8 x 10/100 Base-T RJ45 ports and 2 x 10/100/1000 Base-TRJ45 ports.
• All ports support non-blocking wire-speed forwarding for smoother transmission.
• Supports IEEE 802.3x full-duplex flow control and backpressure half-duplex flow control.

PoE power supply function

• Eight 10/100 Base-T RJ45 ports support PoE+ power supply to meet the needs of PoE power supply in scenarios such as visual security, teleconferencing systems, and wireless coverage.
• In line with the IEEE 802.3af/at PoE power supply standard, the maximum PoE output power of the whole machine is 72W, and the maximum PoE output power of a single port is 30W.
• Automatically identify PoE devices for power supply without damaging non-PoE devices.
• PoE ports support a priority mechanism to ensure the power supply of high-priority ports when the remaining power is insufficient, so as to prevent devices from overloading.

The equipment is stable and reliable

• The low-power design of the host and the fan strengthen the heat dissipation to ensure the stable operation of the product.
• It adopts TP-LINK's self-developed power supply and high redundancy design to provide long-term and stable PoE power output.

It's easy to use

• Plug and play, no configuration required, simple and convenient.
• Users can easily understand the working status of the device through the power indicator (Power) and port status indicator (Link/Act).

Hardware specifications

Software Specifications
